How Fast is Spring?

Dave Syer, 2015

Agenda

  • How much work is Spring doing, compared to other parts of your app?
  • Tools for measurement
  • Comparison between various classpath and packaging choices
  • Speeding things up
  • The future

Baseline Micro App

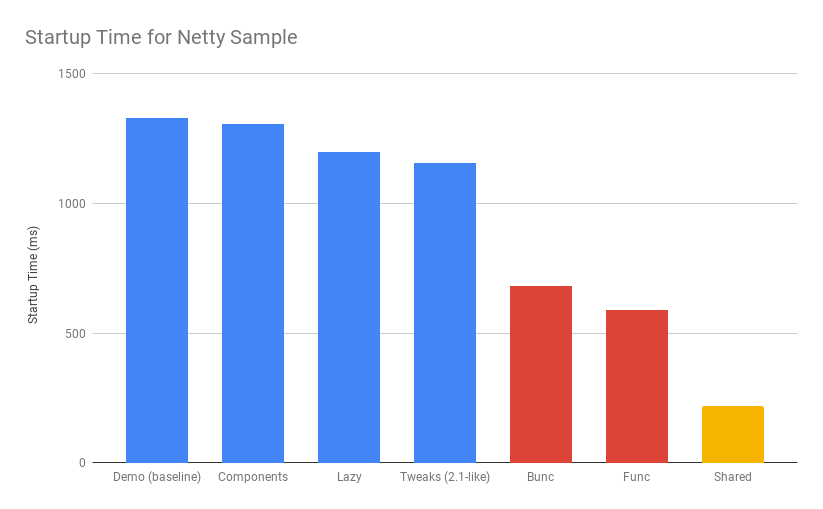

startup progress

Spring Boot 2.1

startup-2.1.x

Heap Memory and Garbage Collection

heap-size-2.1.x

Garbage Collection

flame_20
flame_21

Spring Boot 2.0

Spring Boot 2.1

How Fast is Spring?

TL;DR How do I make my app go faster?

  • Classpath exclusions from Spring Boot web starters
  • Use the spring-context-indexer
  • Don’t use actuators if you can afford not to
  • Use Spring Boot 2.1 and Spring 5.1
  • Use explicit spring.config.location
  • Switch off JMX: spring.jmx.enabled=false
  • Make bean definitions lazy by default
  • Unpack the fat jar and run with an explicit classpath
  • Run the JVM with -noverify. Also consider -XX:TieredStopAtLevel=1
  • Use functional bean definition
  • (Build a native image)

Summary

  • Spring was designed ab initio to be lightweight
  • The engineering team cares deeply about performance
  • There are many optional features
  • Packaging: exploded jar with application main is always best
  • Server: there is no measureable difference between Tomcat, Jetty and Undertow
  • Netty is a bit faster on startup - you won’t notice in a large app
  • The more features you use, the more classes are loaded
  • Functional bean definitions rule
  • Spring Boot, HTTP: starts in <1sec and uses <10MB heap

Tools

Benchmarks: Application Startup

Static benchmarks from https://github.com/dsyer/spring-boot-startup-bench. New JVM (separate process) per application startup, explicit classpath (not fat jar).

Benchmark   (sample) Mode  Cnt  Score   Error  Units Beans Classes
MainBenchmark  actr  avgt   10  1.316 ± 0.060   s/op 186   5666
MainBenchmark  jdbc  avgt   10  1.237 ± 0.050   s/op 147   5625
MainBenchmark  demo  avgt   10  1.056 ± 0.040   s/op 111   5266
MainBenchmark  slim  avgt   10  1.003 ± 0.011   s/op 105   5208
MainBenchmark  thin  avgt   10  0.855 ± 0.028   s/op 60    4892
MainBenchmark  lite  avgt   10  0.694 ± 0.015   s/op 30    4580
MainBenchmark  func  avgt   10  0.652 ± 0.017   s/op 25    4378

Number of Classes vs. Startup Time

pubchart?oid=976086548&format=image

WebFlux and Micro Apps

Benchmark            (sample)  Mode  Cnt  Score   Error  Units Classes
MainBenchmark.main       jlog    ss   10  0.933 ± 0.065   s/op 4367
MainBenchmark.main       demo    ss   10  1.081 ± 0.075   s/op 5779
MiniBenchmark.boot       jlog    ss   10  0.486 ± 0.020   s/op 2974
MiniBenchmark.boot       demo    ss   10  0.579 ± 0.041   s/op 4138
MiniBenchmark.mini       jlog    ss   10  0.420 ± 0.011   s/op 2351
MiniBenchmark.mini       demo    ss   10  0.538 ± 0.009   s/op 3138
MiniBenchmark.micro      jlog    ss   10  0.186 ± 0.006   s/op 1371
MiniBenchmark.micro      demo    ss   10  0.288 ± 0.006   s/op 2112

JVM Tweaks

  • Command line: -noverify -XX:TieredStopAtLevel=1 -Djava.security.egd=file:/dev/./urandom
  • Open J9: CDS
  • Java 10/11: CDS, AOT (GraalVM)
  • Explicit classpath (exploded archive)

Open J9

Benchmark            (sample)  Mode  Cnt  Score   Error  Units Classes
MainBenchmark.main       jlog    ss   10  0.709 ± 0.034   s/op 4536
MainBenchmark.main       demo    ss   10  0.939 ± 0.027   s/op 5954
MiniBenchmark.boot       jlog    ss   10  0.406 ± 0.085   s/op 3090
MiniBenchmark.boot       demo    ss   10  0.505 ± 0.035   s/op 4314
MiniBenchmark.mini       jlog    ss   10  0.340 ± 0.018   s/op 2427
MiniBenchmark.mini       demo    ss   10  0.432 ± 0.019   s/op 3256
MiniBenchmark.micro      jlog    ss   10  0.152 ± 0.045   s/op 1436
MiniBenchmark.micro      demo    ss   10  0.204 ± 0.019   s/op 2238
pubchart?oid=1689271723&format=image

Classpath Exclusions

YMMV, but consider excluding:

  • Jackson (spring-boot-starter-json)
  • Logback (spring-boot-starter-logging)
  • Hibernate Validator (org.hibernate.validator:hibernate-validator)
  • Actuators (spring-boot-starter-actuator)

Spring Tweaks

  • Use the spring-context-indexer.
  • Don’t use actuators if you can afford not to.
  • Use Spring Boot 2.1 and Spring 5.1 when they are available.
  • Use explicit spring.config.location
  • Switch off JMX: spring.jmx.enabled=false
  • Make bean definitions lazy by default.
  • Use functional bean definition.

Lazy Beans

  • Spring Data @EnableJpaRepositories(bootstrapMode=BootstrapMode.LAZY) or spring.data.jpa.repositories.bootstrap-mode=lazy
  • BeanFactoryPostProcessor that switches all beans to lazy=true
  • Look carefully at custom beans with expensive @PostConstruct
  • Profiling with AspectJ

Lazy Subsystems

Break down application into modules and initialize each one separately on demand.

E.g. see Lazy Actuator

pom.xml
<dependency>
	<groupId>org.springframework.boot.experimental</groupId>
	<artifactId>spring-boot-lazy-actuator</artifactId>
	<version>1.0.0.BUILD-SNAPSHOT</version>
</dependency>

Functional Bean Definitions

Before:

@Configuration
public class SampleConfiguration {

    @Bean
    public Foo foo() {
        return new Foo();
    }

    @Bean
    public Bar bar(Foo foo) {
        return new Bar(foo);
    }

}

Functional Bean Definitions

After:

public class SampleConfiguration
        implements ApplicationContextInitializer<GenericApplicationContext> {

    public Foo foo() {
        return new Foo();
    }

    public Bar bar(Foo foo) {
        return new Bar(foo);
    }

    @Override
    public void initialize(GenericApplicationContext context) {
        context.registerBean(SampleConfiguration.class);
        context.registerBean(Foo.class,
                () -> context.getBean(SampleConfiguration.class).foo());
        context.registerBean(Bar.class, () -> context.getBean(SampleConfiguration.class)
                .bar(context.getBean(Foo.class)));
    }

}

Result

startup progress

C.f. Bunc vs Demo.

Examples

Functional Beans: Research

  • Convert @Configuration to ApplicationContextInitializer

  • Hand write configuration using Spring Boot autoconfiguration as a public API (c.f. micro apps)

Compile time options:

  • AspectJ - works with e.g. @Transactional since 2006, but not a full solution for @Configuration
  • Annotation processor (standard JDK feature)
  • Byte code enhancement, e.g. Byte Buddy plugin

Ahead of Time Compilation (AOT)

Native images can be very efficient (see Graal VM).

$ native-image -H:Name=target/bunc ... com.example.func.BuncApplication
$ ./target/bunc

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::

...
Aug 07, 2018 11:25:13 AM org.springframework.boot.web.embedded.netty.NettyWebServer start
INFO: Netty started on port(s): 8080
Aug 07, 2018 11:25:13 AM org.springframework.boot.StartupInfoLogger logStarted
INFO: Started application in 0.036 seconds (JVM running for 0.04)
Benchmark app started
Started HttpServer: 40ms

Downside: you lose all of JVM benefits (debugging, manageability, dynamic compilation, optimization, garbage collection).

Also, too many issues still for general purpose use.

/
